Optical Coating Service

K Lab provide high quality optical coating service with

• Quick turn around time
• Low development cost
• Potential to transfer to high volume production

K Lab has Ebeam evaporators with IAD and in-situ optical and thickness monitoring system for highly accurate, reliable and repeatable optical coating for different wavelength. Optical film characterization instruments such as Cary 500, FilmTek 4000A, Prometrix FT-650, Dektak are on hand for characterization.

Facet AR/HR coating

K Lab provides facet coating service for opto-electronic products. Standard wavelengths include 785, 808, 945, 980, 1330, 1420-1620nm. Coating Service including:

• Standard one layer AR coating and quarter-wavelength multi-layer HR coating.

• AR V-coating and W- coating.

• K Lab also provide bar cleaving service before coating, and device chipping and pick and place service after coating.



Wafer/substrate coating

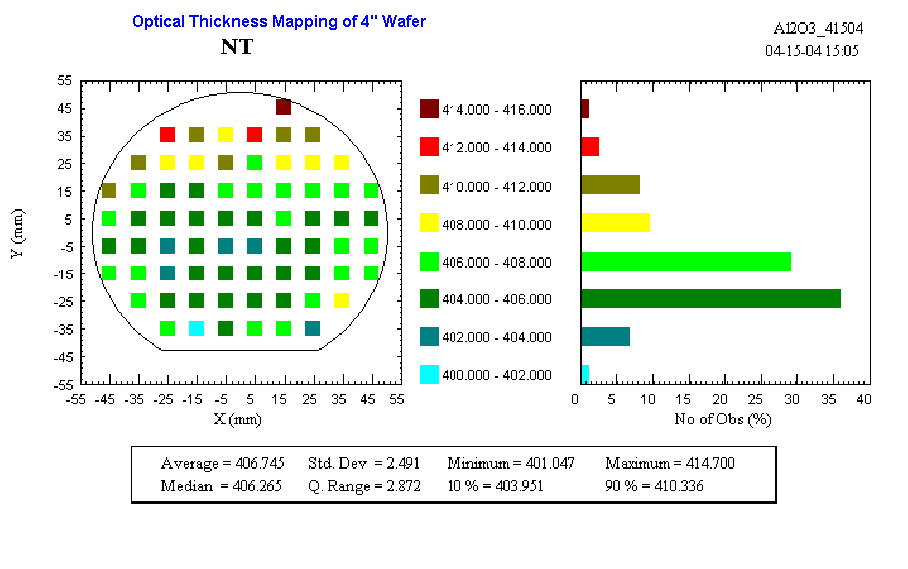

K Lab can provide standard and/or customer designed optical thin film coating service on wafer/substrate with good uniformity.

Fiber coating

Specially designed fiber coating chamber is used for large lot fiber tip AR coating.

Any Questions? Please email us: info@klabcorp.com
